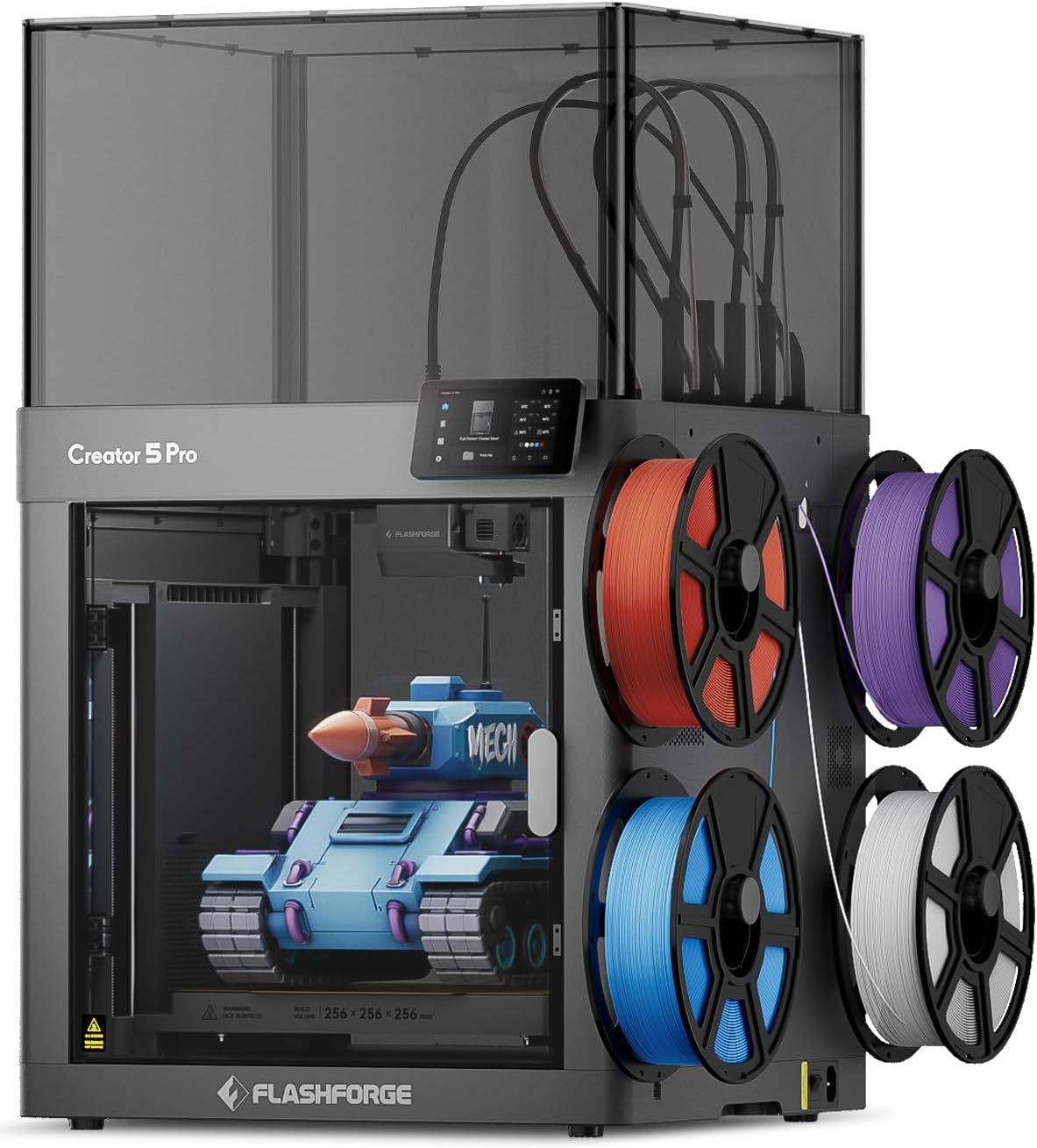

FLASHFORGE Creator 5 Pro 4-Toolhead 3D Printer
FLASHFORGE Creator 5 Pro 4-Toolhead 3D Printer
FLASHFORGE Creator 5 Pro 4-Toolhead 3D Printer
The Flashforge Creator 5 Pro is a professional-grade FDM 3D printer designed for high-speed, multi-material printing with reliable performance and advanced temperature control for demanding applications.
More Savings: Featuring 4 independent toolheads and a 7-second FlashSwap changer, the Creator 5 Pro switches nozzles without flushing filament. This completely eliminates massive purge waste, drastically slashing operational overhead and material costs while achieving up to 5X faster multi-color printing speeds.

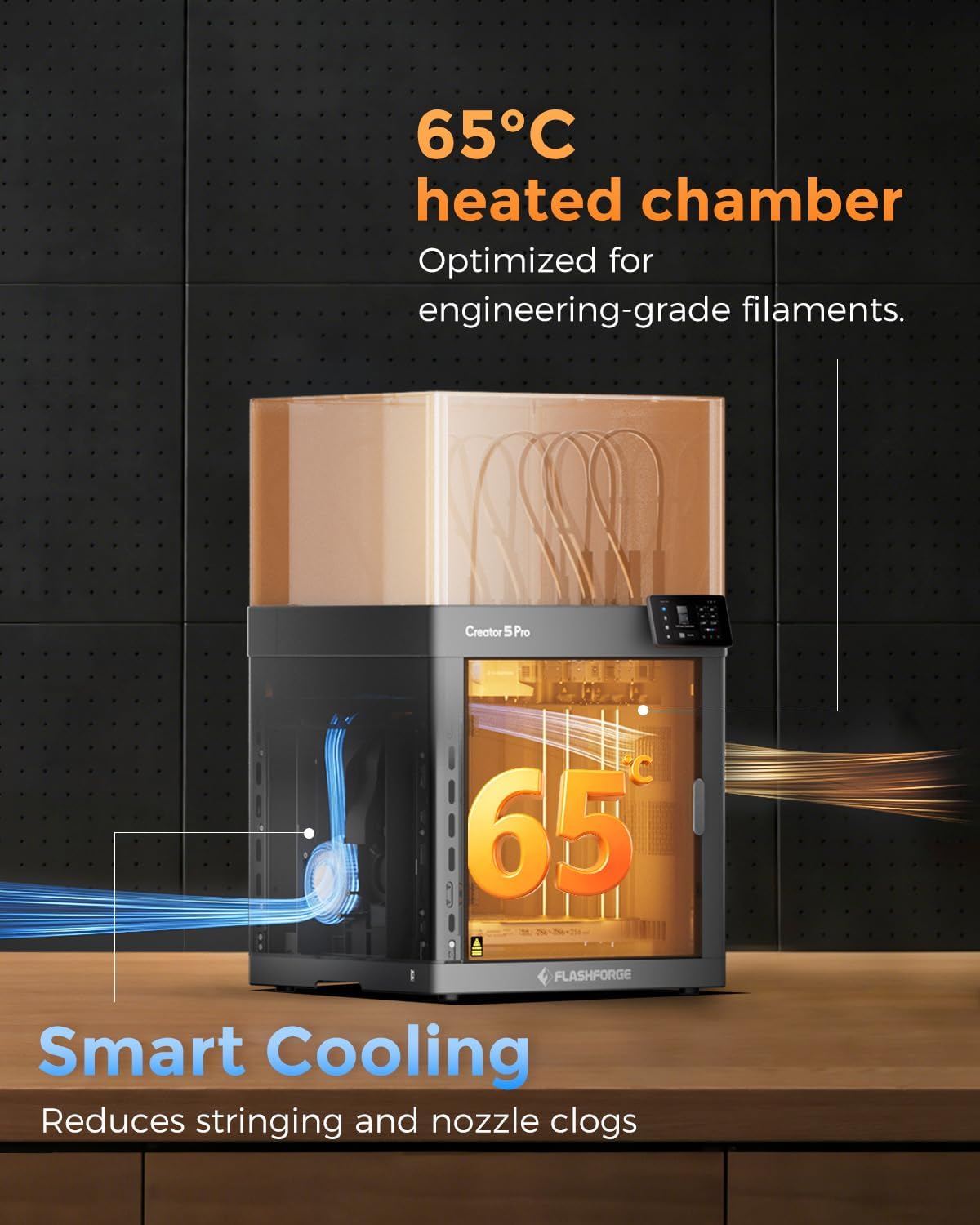

More Possibilities: Designed for industrial engineering, the fully enclosed frame features an active heated chamber up to 65°C to prevent warping in advanced filaments. Print confidently with ABS, PC, and PA to unlock ultimate design versatility and produce robust industrial parts.
More Stability: Built on a ultra-rigid integrated architecture combining a CoreXY motion structure, precision linear rails, and 1.5GT high-torque timing belts. Delivers rapid printing speeds up to 600mm/s without sacrificing accuracy, effectively eliminating high-speed ghosting and mechanical vibrations.

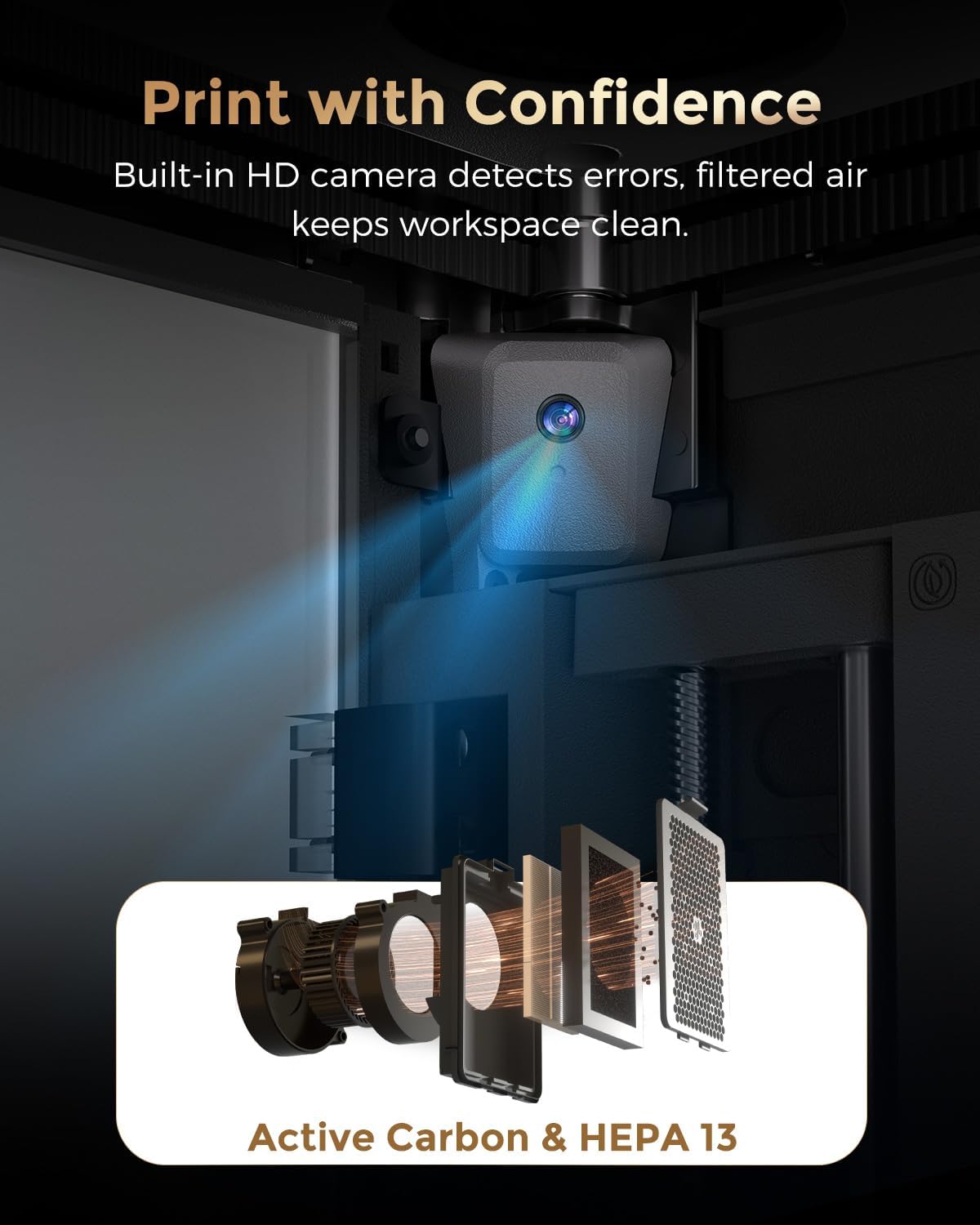

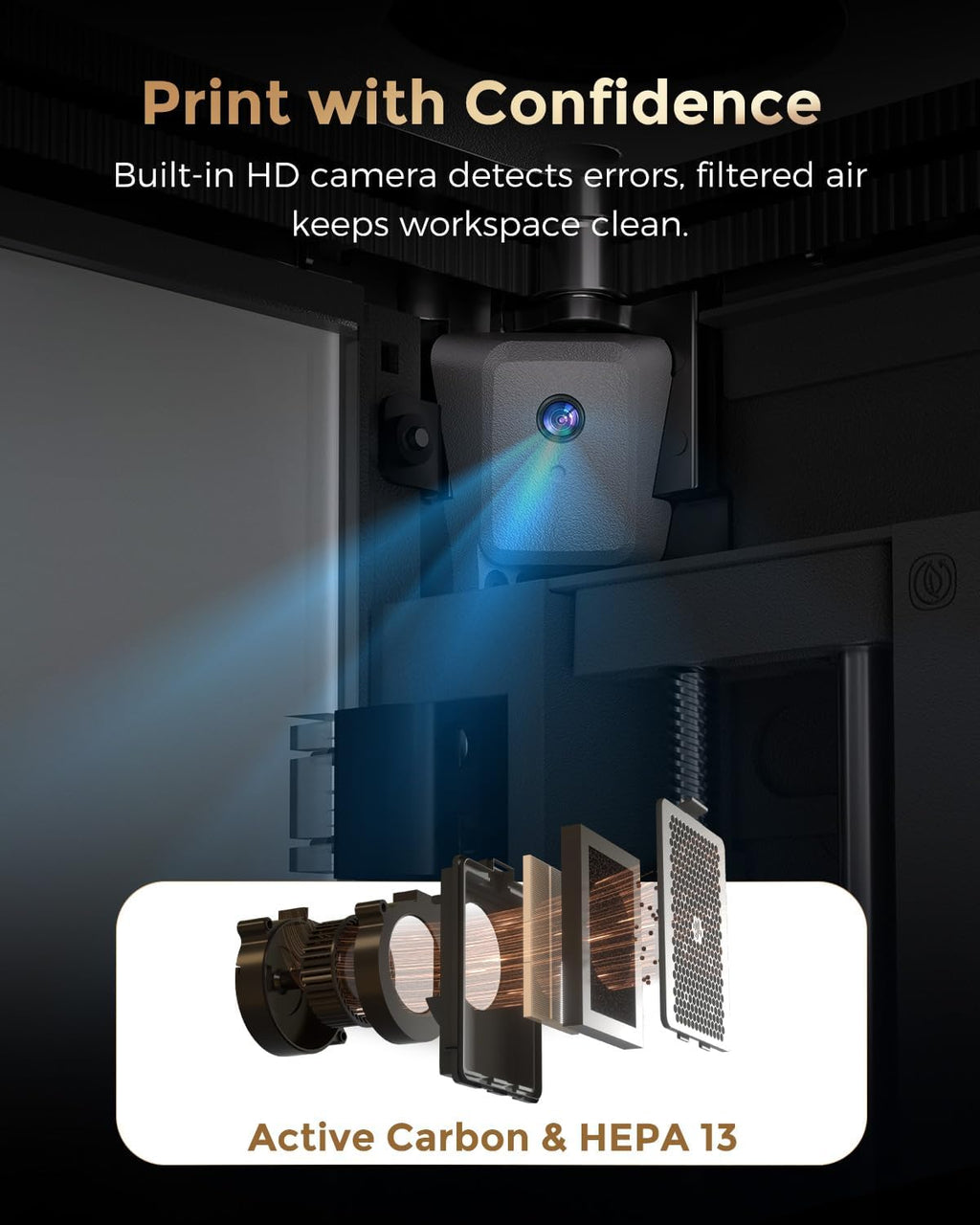

More Safety: Prioritizing workspace safety, the dual HEPA 13 and activated carbon system effectively traps ultrafine particles and fumes from filaments. Paired with a continuous airflow system, it maintains a safe, odorless, and thermally stable production environment.

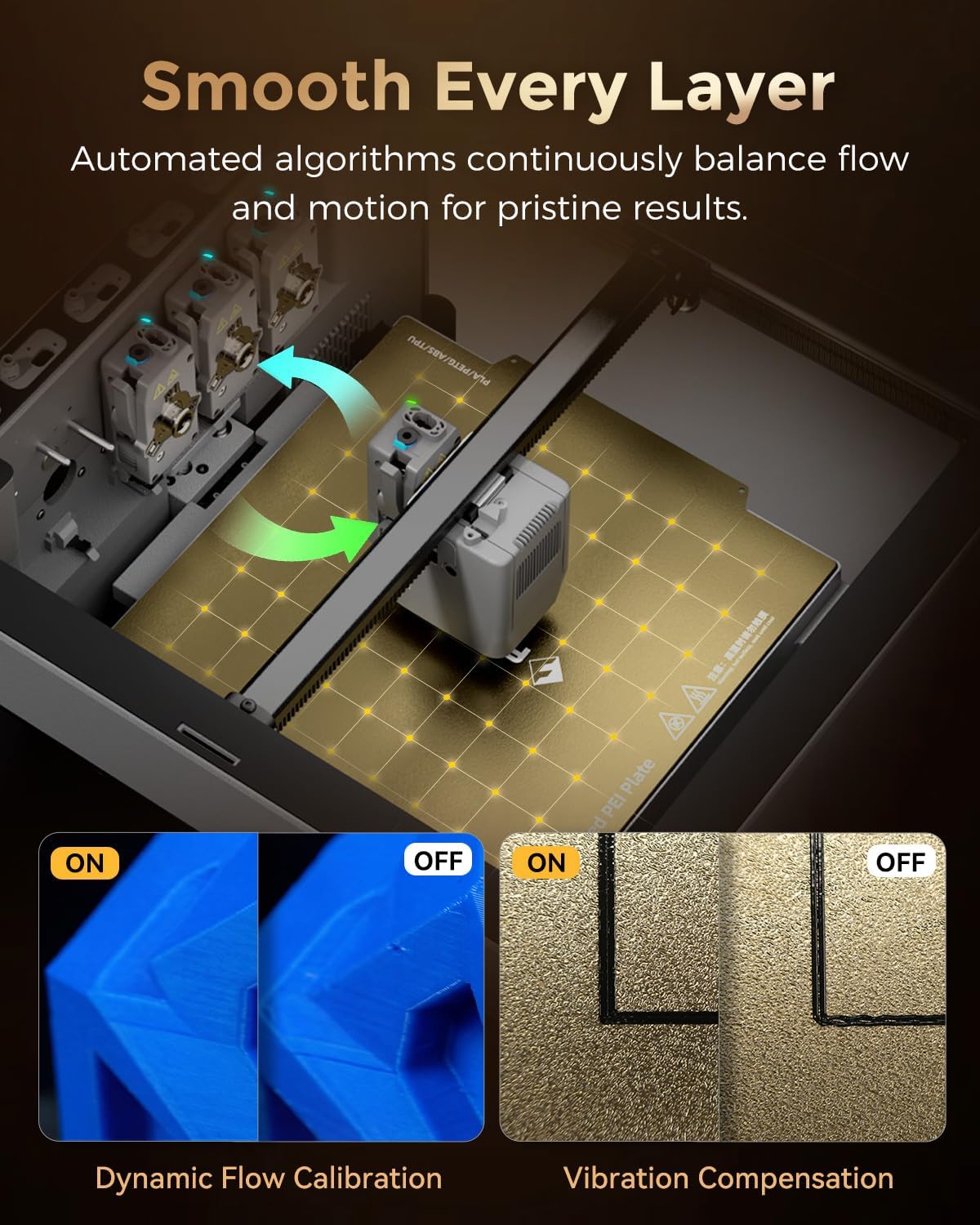

More Control: Get a flawless first layer with automated toolhead offset calibration, vibration compensation, and dynamic flow calibration. Monitor real-time progress via the built-in HD chamber camera, auto-generate time-lapse videos, and exercise remote control through Flash Studio on desktop or mobile.
Key Features

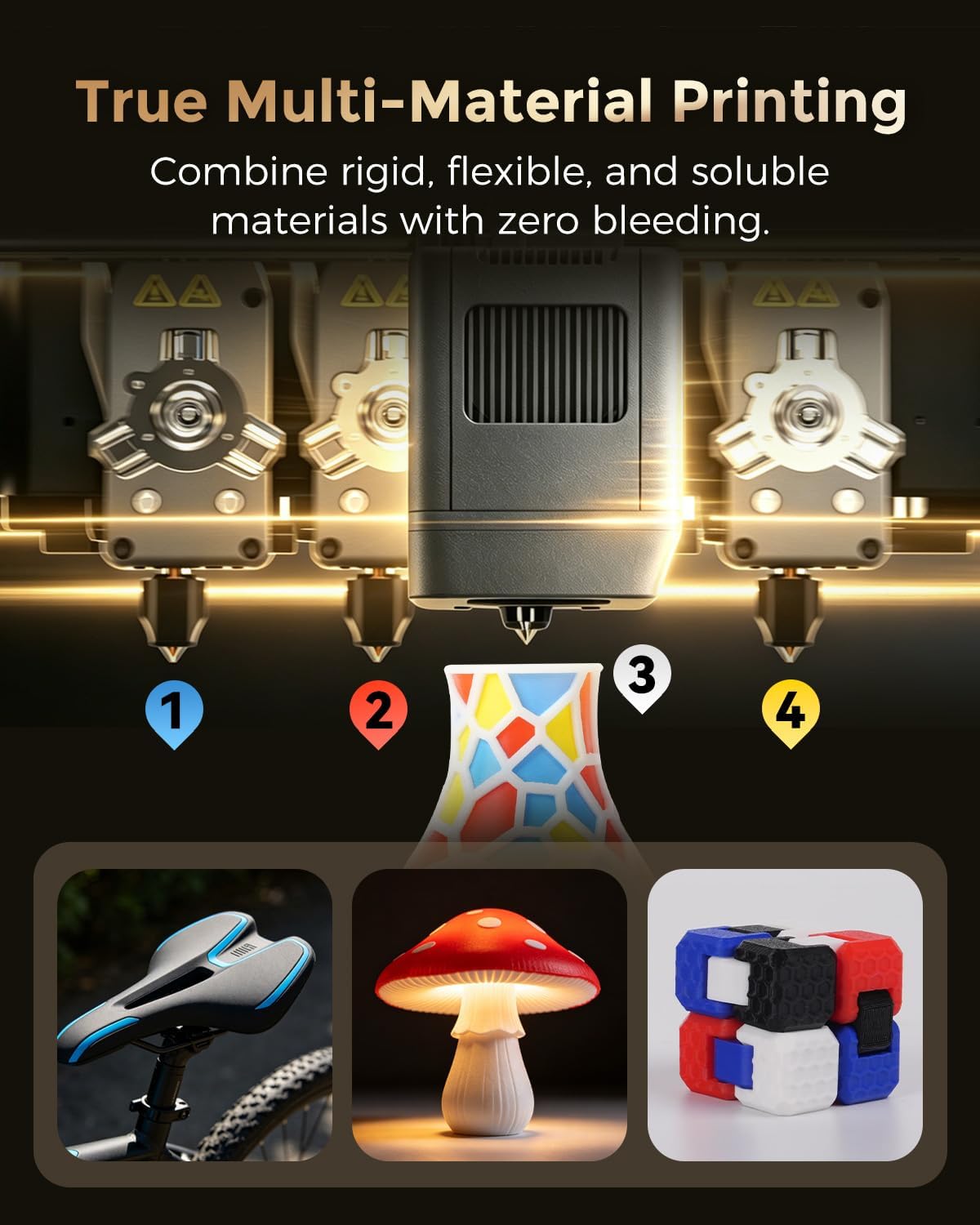

- 4 independent toolheads for multi-color and multi-material printing.

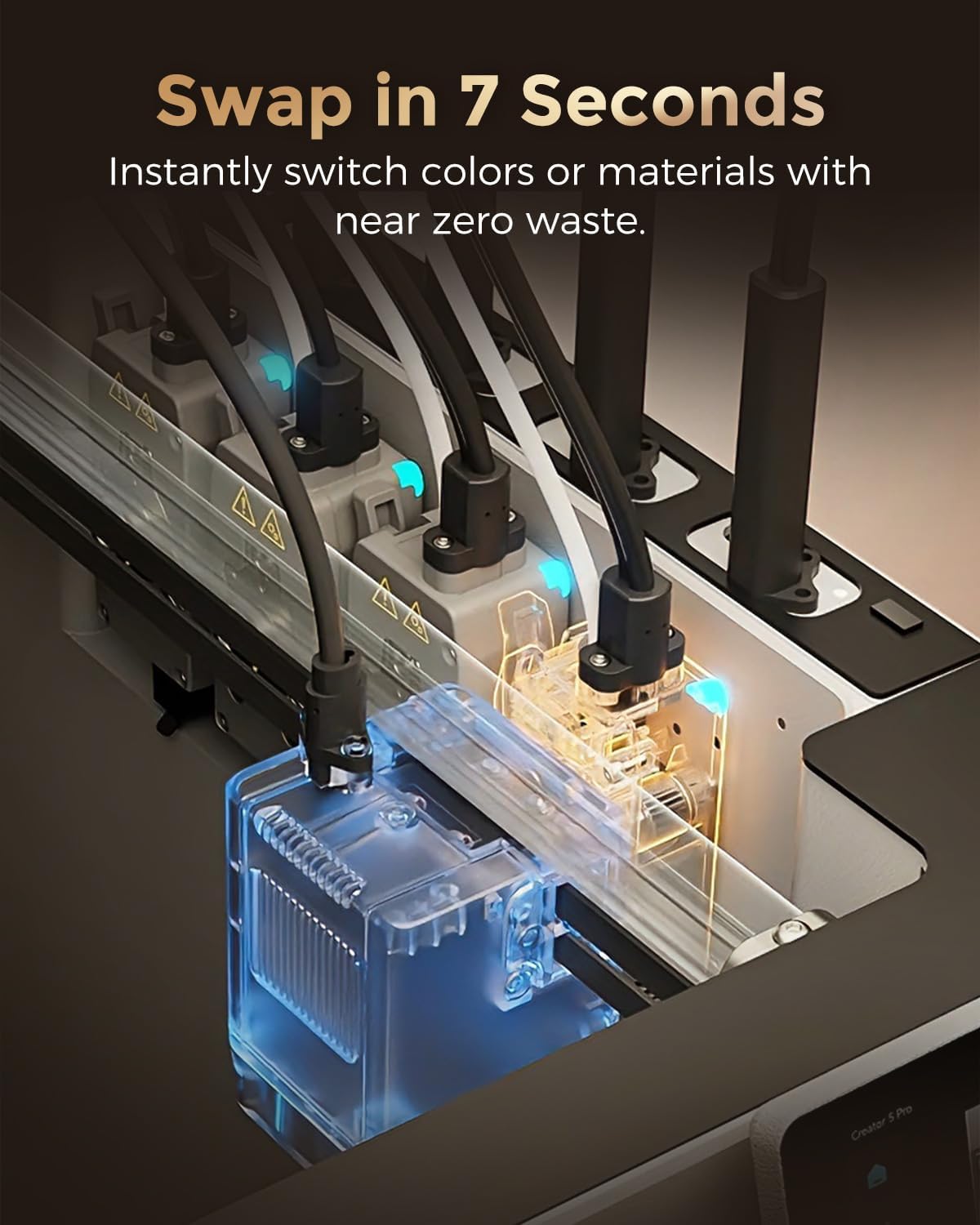

- FlashSwap tool-changing system enables rapid toolhead switching with minimal material waste.
- Fully enclosed build chamber for improved temperature stability and print consistency.
- Active chamber heating up to 65°C, suitable for demanding engineering materials.
- High-speed printing up to 300 mm/s with travel speeds up to 600 mm/s.
- Automatic leveling and toolhead offset calibration for easier setup.
- Dynamic flow calibration for improved print quality.
- HEPA 13 + activated carbon filtration helps filter particles and VOCs.
- Built-in 720p camera for remote print monitoring.
- Door and top-cover detection for added operational safety.
- Power-outage recovery and filament run-out detection.
Specifications
| Specification | Details |
|---|---|
| Printer Type | FDM 3D Printer |
| Toolheads | 4 Independent Toolheads |
| Build Volume | 256 × 256 × 256 mm |
| Print Speed | Up to 300 mm/s |
| Travel Speed | Up to 600 mm/s |
| Acceleration | Up to 30,000 mm/s² |
| Max. Extruder Temperature | 320°C |
| Max. Bed Temperature | 120°C |
| Active Chamber Temperature | Up to 65°C |
| Build Plate | Textured PEI Flexible Steel |
| Layer Thickness | 0.1–0.4 mm |
| Standard Nozzle | 0.4 mm |
| Optional Nozzles | 0.25 / 0.6 / 0.8 mm |
| Maximum Flow Rate | 32 mm³/s |
| Filament Diameter | 1.75 mm |
| Display | 4-inch, 800 × 480 Full-Color Touchscreen |
| Filament Detection | Run-out Sensor |
| Camera | 1280 × 720, 30 fps |
| Connectivity | USB / Wi-Fi |
| Wi-Fi | 2.4 GHz / 5 GHz |
| Slicing Software | Orca-Flashforge, OrcaSlicer |
| Air Filtration | HEPA 13 + Activated Carbon |
| Printer Dimensions | 520 × 443 × 710 mm |
| Weight | Net 18 kg; Gross 22 kg |
| Power | 100–120V / 200–240V AC, 50/60Hz, 1200W |
| Printer Structure | Fully Enclosed Frame |
What's in the Box
1 × FlashForge Creator 5 Pro 3D Printer
1 × Extruder Dock Module
1 × Filament
1 × Power Cord
1 × Display Screen
4 × Spool Holders
4 × Nozzle Blockers
1 × Allen Wrench Set
1 × Grease
1 × Screw Set
1 × Top Cover Assembly
