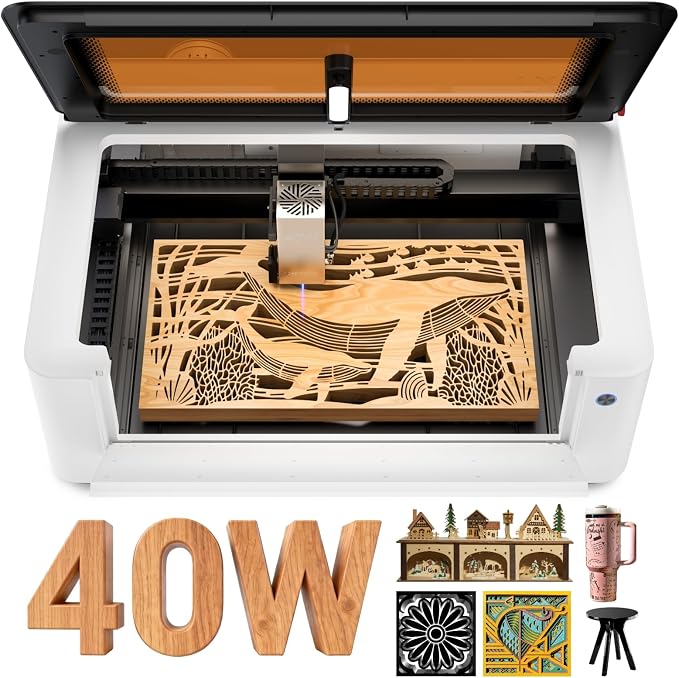

The LaserPecker LX2 40W is a high-performance laser engraving and cutting machine designed for large-format projects, precision positioning and high-speed processing. With a 500 × 305 mm working area and speeds of up to 1000 mm/s, it delivers efficient performance for a wide range of engraving and cutting applications.
The LX2 features a tool-free quick-swap system, allowing users to switch between 20W, 40W and 60W diode laser modules and the 2W infrared laser module. Its 12MP/6K camera and Point-To-Shape Positioning provide accurate project alignment, while the optional riser base and rotary accessories enable processing of thicker, cylindrical and irregular objects.
Key Features
- Powerful 40W Diode Laser: Designed for demanding engraving and cutting applications.

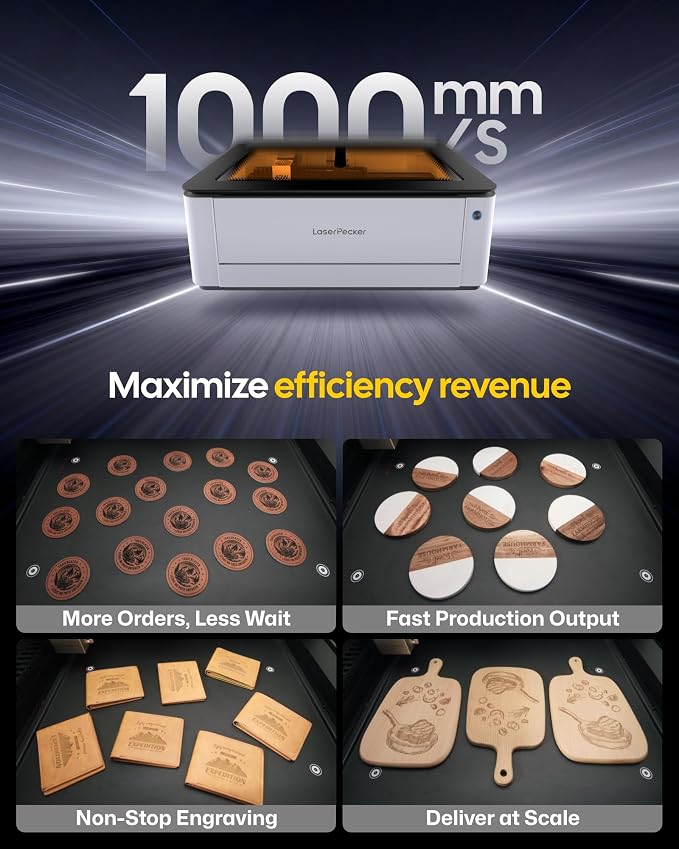

- HyperSpeed Performance: Reaches up to 1000 mm/s with 10,000 mm/s² acceleration.

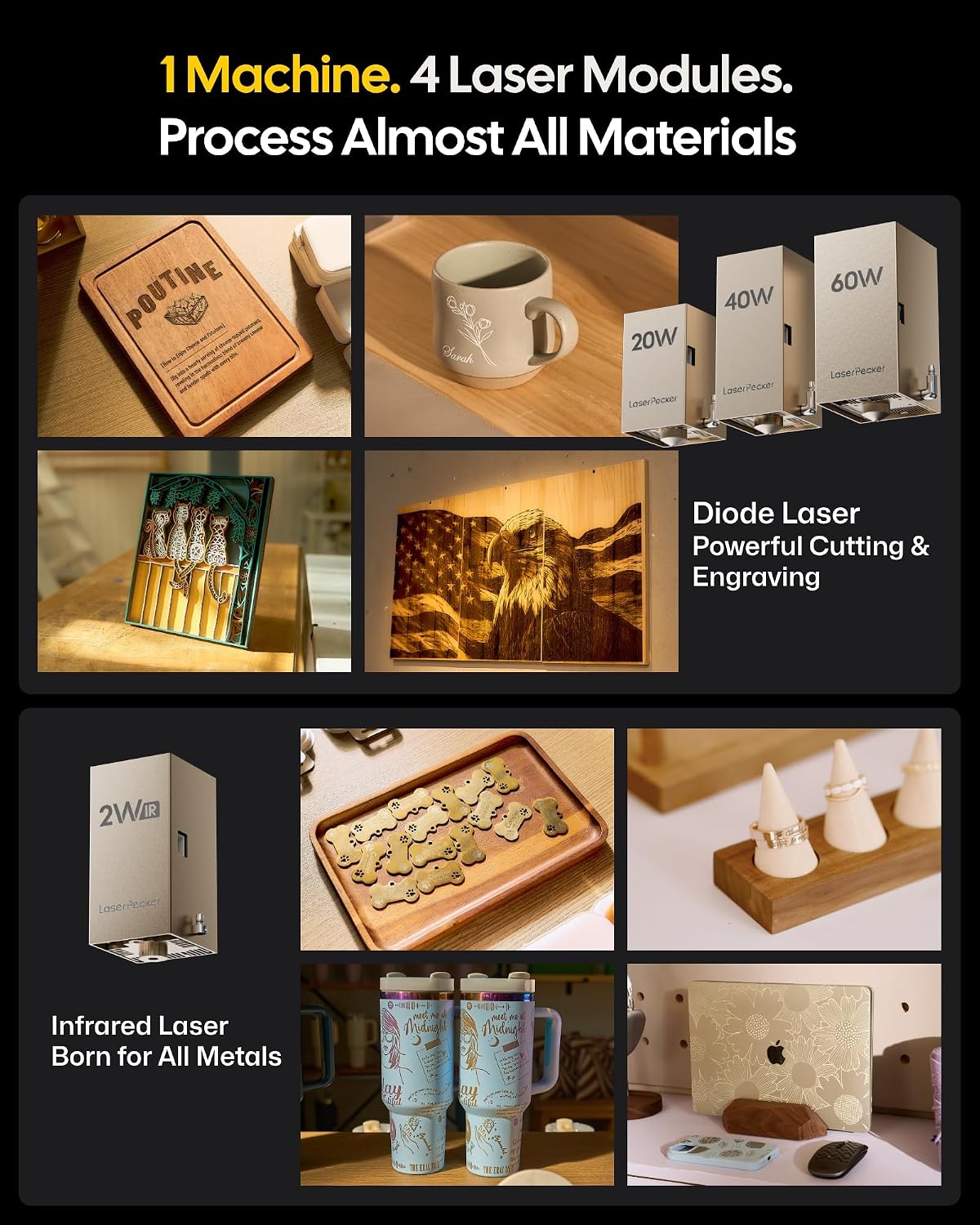

- Tool-Free Quick Swap: Switch between 20W, 40W, 60W diode and 2W IR laser modules without tools.

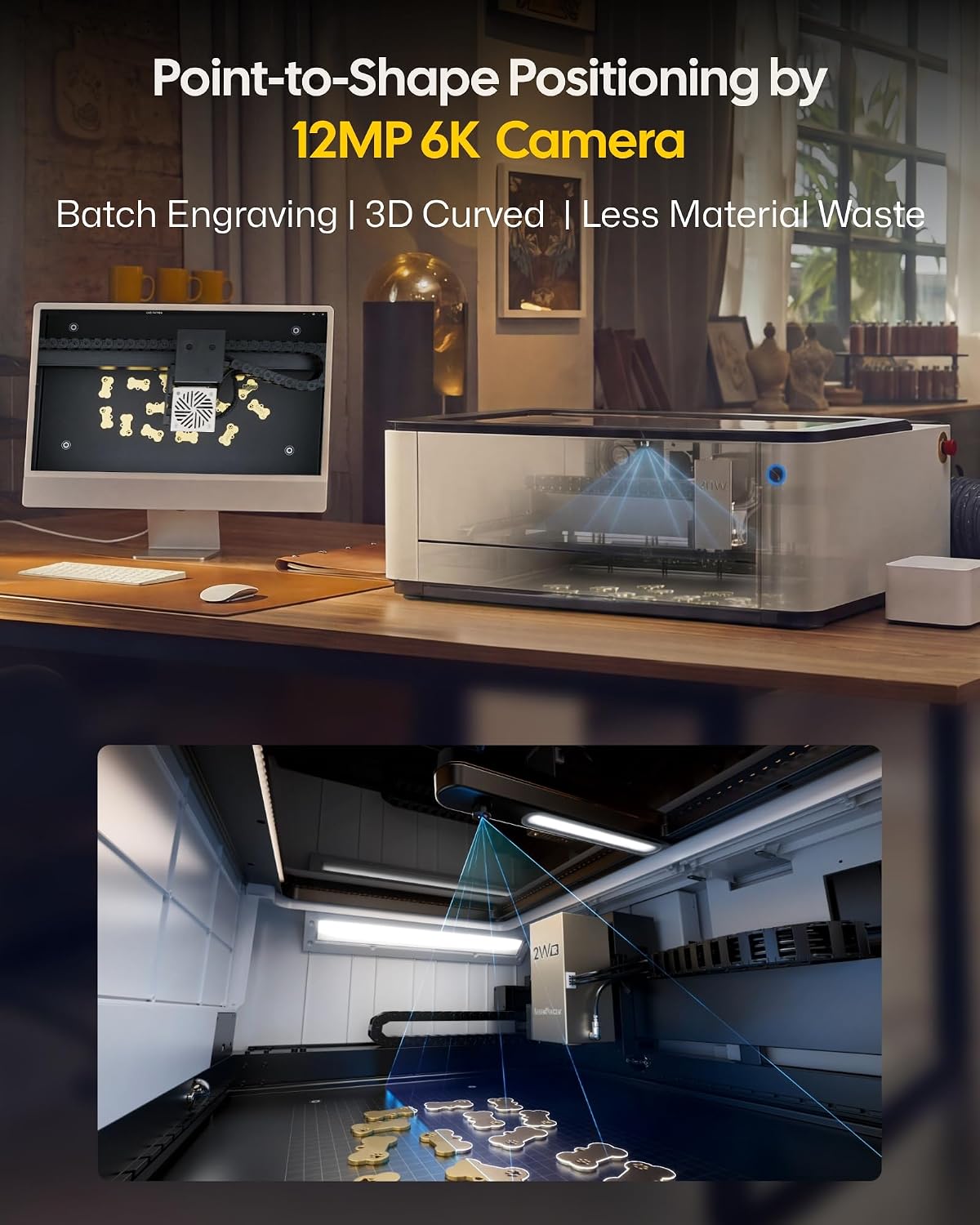

- Dual Precision Alignment: Combines Point-To-Shape Positioning with a 12MP/6K camera.

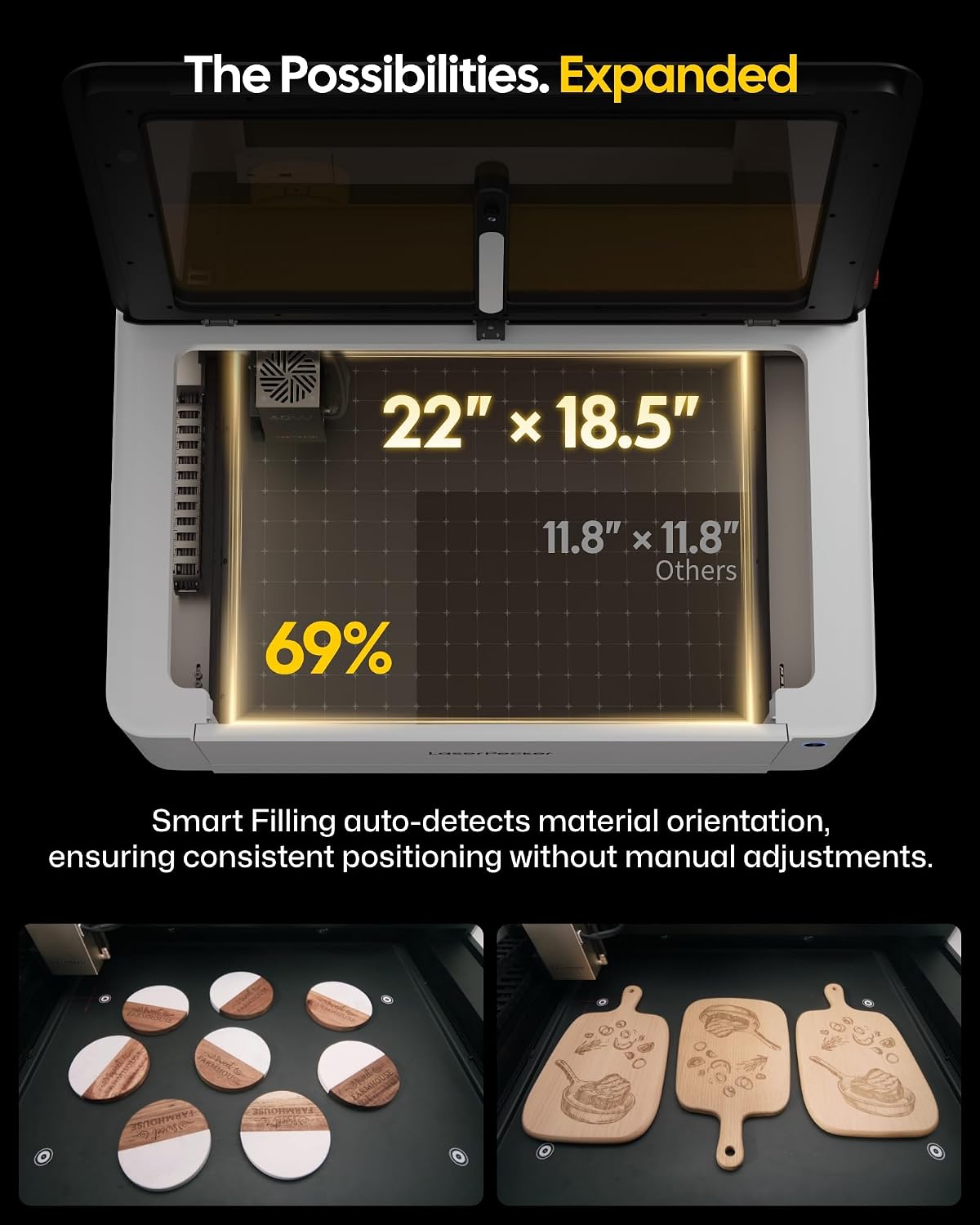

- Large Working Area: Provides a 500 × 305 mm engraving area.

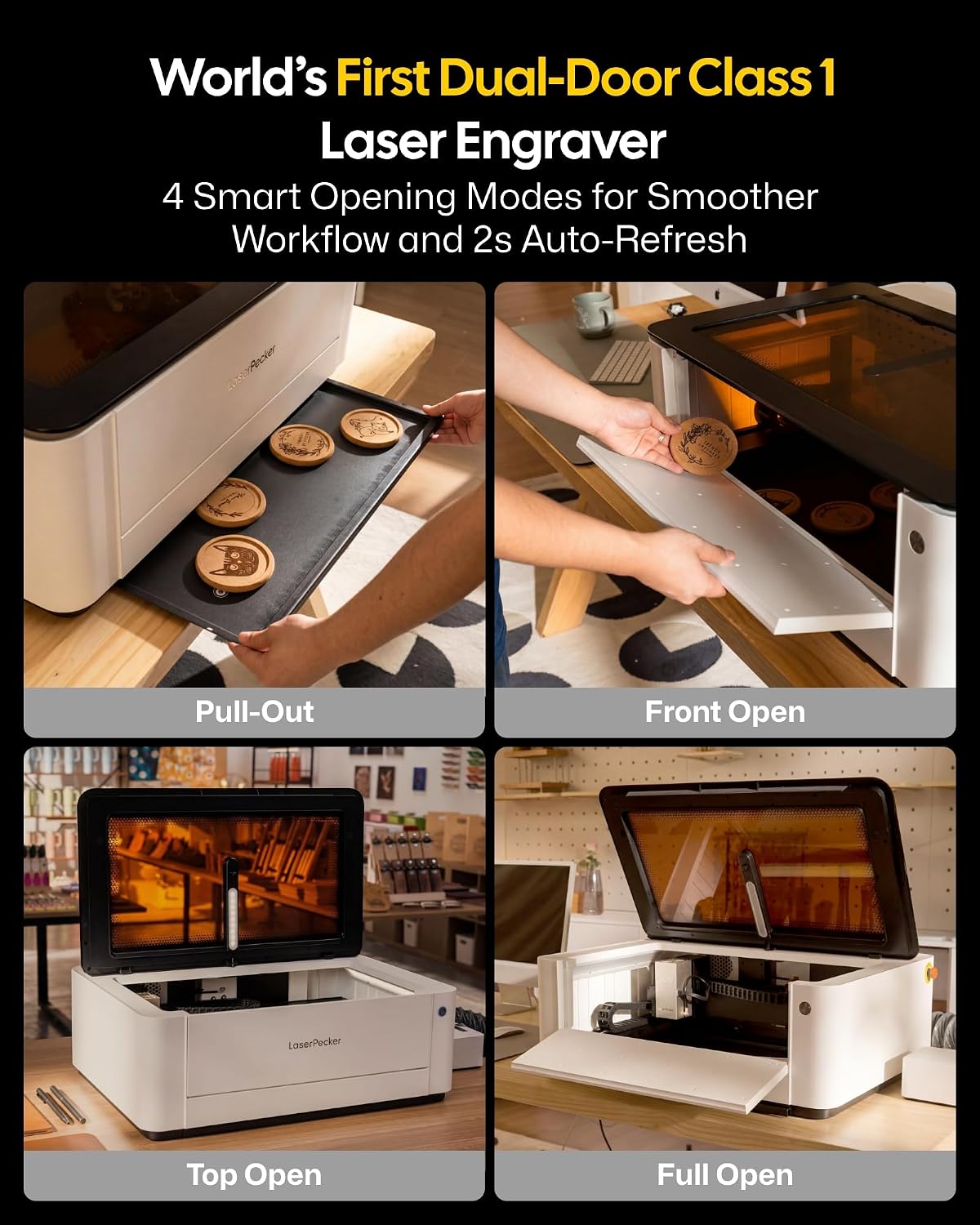

- Compact Large-Format Design: Dual-door and side-opening access simplifies material loading.

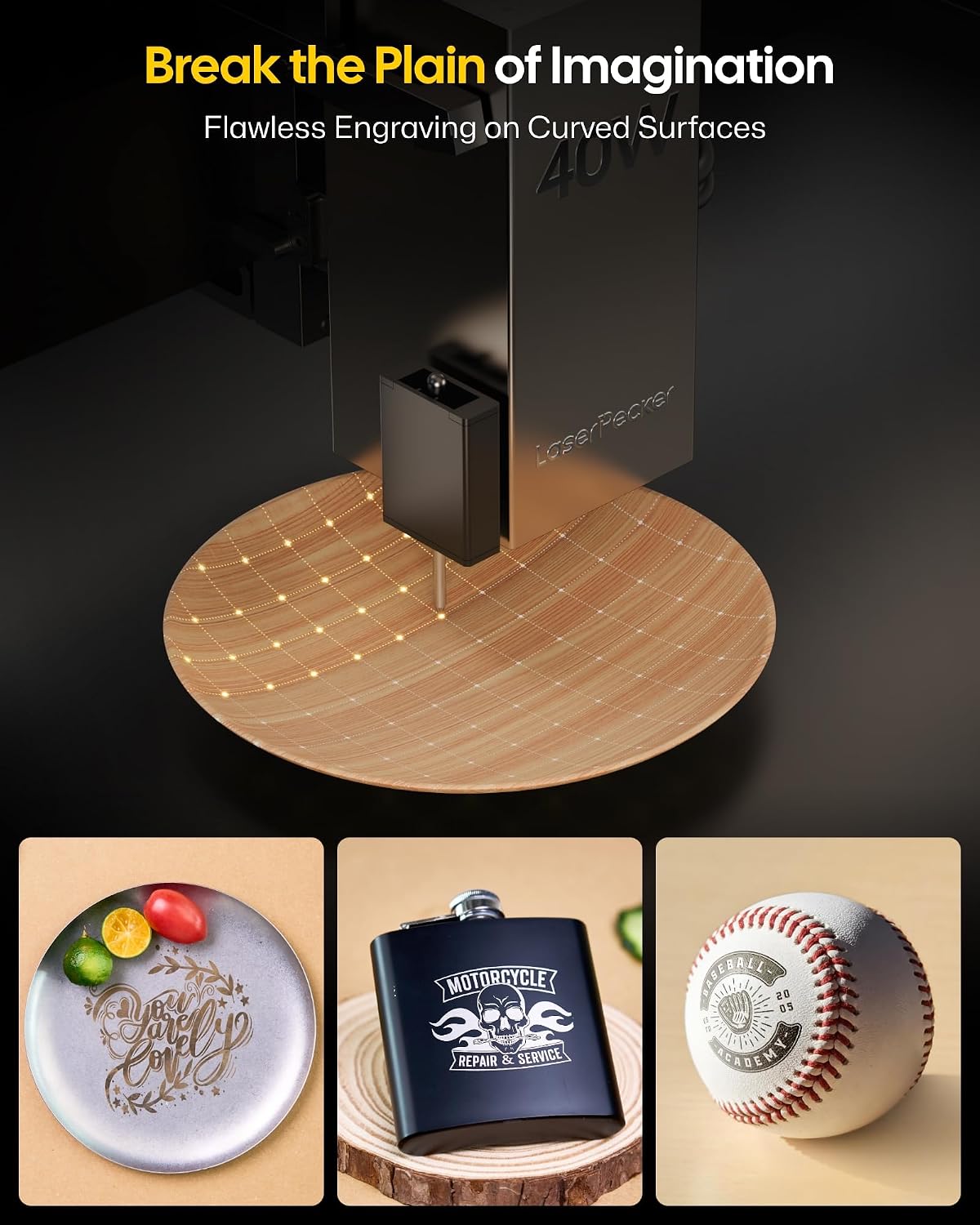

- 3D Rotary Ready: Supports curved, cylindrical and irregular objects with optional rotary accessories.
- Extended Processing Height: Supports objects up to Ø150 mm with the optional riser base.
- Rotary Engraving: Supports cylindrical objects up to Ø130 mm with the required riser base and rotary extension.
- Class 1 Safety Certified: Designed for safe operation within its certified configuration.
Specifications
| Specification | Details |
|---|---|
| Product Type | Laser Engraving & Cutting Machine |
| Model | LaserPecker LX2 40W |
| Laser Type | 40W Diode Laser |
| Working Area | 500 × 305 mm |
| Maximum Working Speed | 1000 mm/s |
| Maximum Acceleration | 10,000 mm/s² |
| Standard Processing Height | Ø45 mm |
| Processing Height with Optional Riser Base | Ø150 mm |
| Maximum Rotary Engraving Diameter | Ø130 mm |
| Camera | 12MP / 6K |
| Positioning | Point-To-Shape Positioning |
| Rotary Capability | 3D Rotary Ready |
| Safety Certification | Class 1 |
| Main Unit Dimensions | 779.5 × 609.2 × 281.15 mm |
| 40W Diode Laser Module Weight | 766 g |
| Compatible Laser Modules | 20W / 40W / 60W Diode, 2W IR |

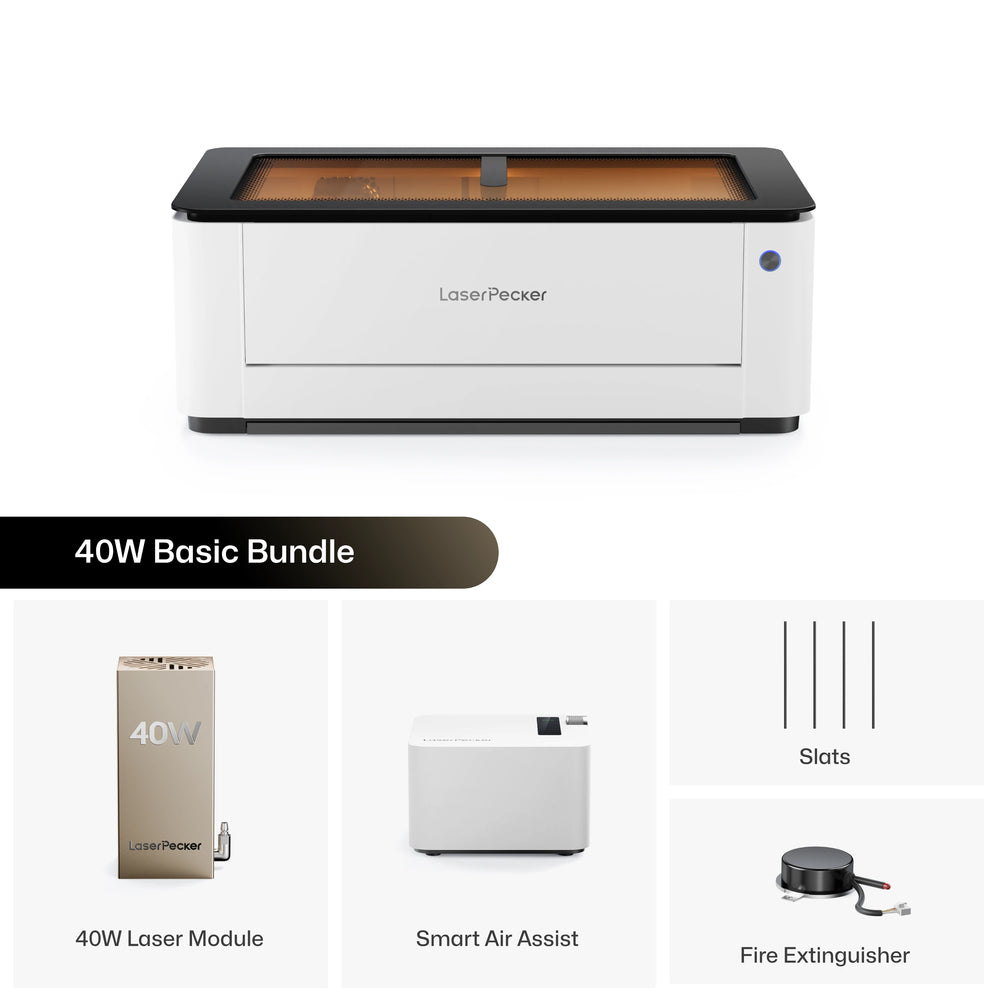

What's in the Box
1 x 40W Laser Module
1 x Smart Air Assist
1 x Slats
1 x Fire Extinguisher
