Exceptional Performance with the Biggest Upgrade Ever FLUX HEXA brings your work to the next level quality. With a huge working size of 730 x 410mm, FLUX HEXA is ready for bigger challenges. FLUX HEXA's 60 W CO₂ laser cuts and engraves dozens of materials. Its bigger and deeper working area is designed specifically for professional production. High resolution combined with a faster engraving speed will make your laser cutting experience as smooth as possible.
A far-extended lifespan laser tube compared with Beam Series, enabling the professionals to work efficiently with just a finger click. With fascinating laser efficiency and durability, FLUX HEXA perfectly cuts through dozens of materials with the powerful CO2 laser.
33% Bigger Working Area
With 730 x 410 x 125mm of working area, it’s 33% larger than Beambox Pro. Built for more capacity, more possibilities.
900mm/s High Speed Engraving
Carrying the Cortex M4 core chip. HEXA provides maximum engraving speed of 900mm/s, to fulfill business and professional requirements.
60W High Spec Laser Tube
Brand new high spec 60W laser tube with optional 1.5-inch focus lens substantially shrinking laser spot, achieving 1000 DPI resolution. 10,000 hours of laser tube lifespan with 1 year warranty.
1000 DPI
HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters.
Electric elevation platform
Equipped with an electric elevation platform. Double tap to automatically adjust to optimized platform height.
Touchscreen Control. Intuitive Experience
From connecting to Wi-Fi to checking work progress, everything is just a tap away.

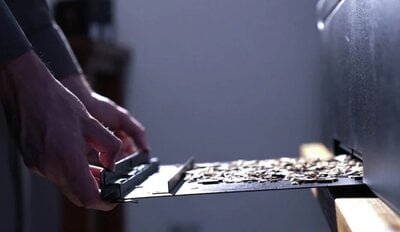

Built-in cleaning slot
Built-in cleaning slot. Providing efficient cleaning experience.
Safety Sensor
Safety sensors alert in case of unplanned movement, overheated temperature warning and fire alarm. We got your back while creating!
Damper
Combining dampers and liftable rear cover, increasing both safety and convenience.
Specifications:
Machine
Dimensions: 1110 x 670 x 273 mm
Weight: 58 kg
Power: AC 110V / 220V
Touch Panel: 1024 x 600 LCD
Workspace
Work Area: 730 x 410 mm
Work Area Depth: 125 mm (Autofocus: 60 mm)
Camera Preview Area: 730 x 395 mm
Camera: HD CMOS
Laser performance
Laser: 60W CO2 Laser
Wavelength: 10640 nm
Speed: 1-900 mm/s
Cutting Thickness: 0 to 21 mm (varies by material)
Workflow
I/O: Wi-Fi / USB / Ethernet / Direct Network Cable
Mode: Vector / Graphic (monochrome, gray scale)
Operating System: Windows / macOS / Linux
File Type: JPG / PNG / SVG / DXF / AI / PDF
What's in the Box:
1 x FLUX HEXA 60W laser cutter
1 x Honeycomb cutting platform
1 x Vent/exhaust hose with clamp
1 x Wi-Fi USB dongle/receiver
1 x USB cable
1 x Power cord
1 x Laser cutter lubricating oil
1 x Mirror-alignment/test tape
1 x Tool kit, including hex/Allen keys, Torx wrench and double-ended wrench
1 x Test engraving wood board
1 x Quick start guide and cards
