FLUX Beam Air

FLUX Beam Air

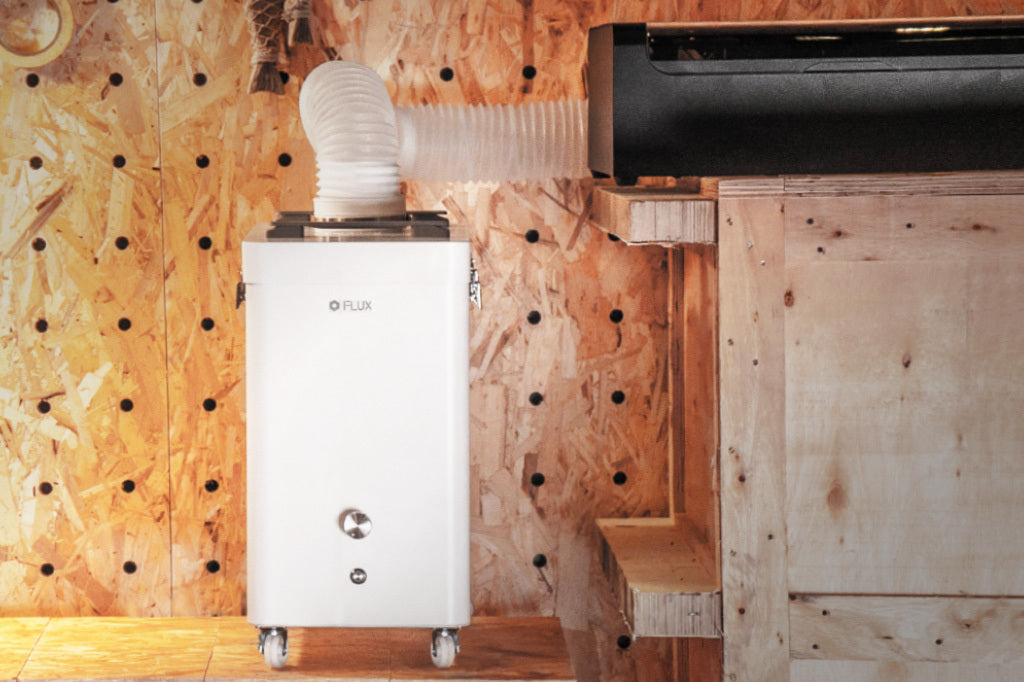

FLUX Creativity Beam Air is a powerful air filtration system designed to filter the exhaust air of any laser cutter with a 3.9" diameter air outlet. It incorporates a four-layer filter with a prefilter (10-30 hour lifespan), a medium efficiency filter (50-150 hour lifespan), activated charcoal filter (300-600 hour lifespan), and a HEPA filter (10-300 hour lifespan). Connect the Beam Air's inlet hose to your device's air outlet and connect it to any FLUX laser cutter with a USB-B cable to turn the unit on automatically when you start your laser cutter.

4-Layer Filter for Ultra Clean Air

Beam Air uses a highly effective 4-layer filtration system and a brushless motor with superior air intake to block harmful molecules and odors generated during laser engraving.

Adjustable Ventilation Makes A Friendly Workspace

The adjustable knob design allows you to control the amount of air ventilation and reduces noise for a quiet working space.

Automatic Filtering Saves Energy

By connecting Beam Air to any FLUX laser cutter with a USB-B cable, Beam Air will turn on automatically when laser cutting starts and off when finishes.

Compatible with Other Laser Cutting Machines

Beam Air works with any laser cutting machine that comes with a 10cm air-outlet diameter.

Simple and Elegant

Compact with a small footprint, Beam Air even has wheels attached to fit perfectly into your studio.

Specifications:

Dimensions: 470 x 260 x 490 mm

Weight: 17 kg

Power: AC 110V

Max. fan volume: 350CFM, 9800L per min

Voltage: 180W

Inlet diameter: Φ 100mm

Filter: Pre-Filter, H13 HEPA filter, activated charcoal filter

What's in the Box:

1 x FLUX Beam Air Unit

4 x Filters

1 x Power Cable

1 x USB-B Cable

1 x Hose Clamp / Ḍuct Clamp

1 x User Manual
